Airmar B765c Low High Chirp Transducer With Garmin 12-Pin Mmc

Airmar B765c Low High Chirp With Garmin 12-Pin Mmc

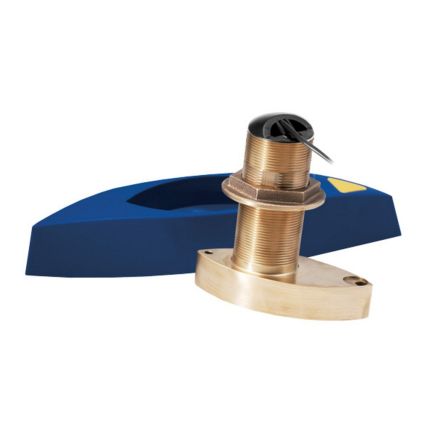

Airmar B765C Low High CHIRP with Garmin 12-Pin Mix-N-Match Cable

Model: B765C-LH-12G

• Depth & fast-response water-temperature sensor
• Low—CHIRPS from 40 kHz to 75 kHz, 32° to 21° beamwidth
• High—CHIRPS from 130 kHz to 210 kHz, 15° to 9° beamwidth
• 115 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
• All the advantages of the larger Thru-Hull Chirp transducers, suitable for smaller boats
• Bronze transducer housing with High-Performance Fairing
• Boat Size: Up to 9 m (30’) and above
• Exclusive Xducer ID® technology
• Hull Type: Fiberglass or wood

Rely on Airmar’s new broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 115 kHz of total bandwidth in just one installation, saving customers time and money.

A Thru-Hull Chirp transducer perfectly suited for smaller fishing boats, the B765L/H Chirps across the following bandwidths:

* Please Note: The low frequency operating band is 300 W. The medium and high frequency operating band is 600 W.

Specifications

Frequency	Low—CHIRPS from 40 kHz to 75 kHz, 32° to 21° beamwidth High—CHIRPS from 130 kHz to 210 kHz, 15° to 9° beamwidth
Housing	Bronze

What’s in the Box:

• B765C-LH-MM
• MMC-12G
• Fairing Block

Manufacturer Part Number: B765C-LH-12G
