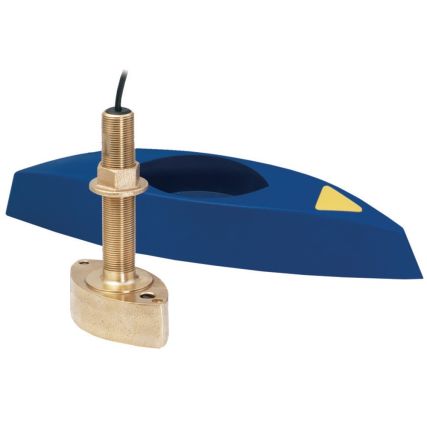

B45-DT-HB 600W Thru-Hull Transducer w/Fairing Block & Humminbird #9 Connector

The B45 is our smallest and most economical, dual-frequency, bronze, stem transducer. Its streamlined shape and High Performance fairing block deflects aerated water from the transducer’s face for strong return echoes and clear display images.

Features:

• Bronze housing
• Depth and Temperature
• Recommended for planing-hull powerboats and cruising sailboats up to 9 m (30’)
• Good sensitivity in a compact housing
• Fast-response water-temperature sensor provides ±0.2°C (±0.1°F)
• High-Performance Fairing included
• Usable Shaft Length: 92 mm (3.62”)
• Standard fairing block
• Frequency: 50/200 kHz
• Maximum Depth Range:

• 50 kHz—235 m to 353 m (800’ to 1,200’)
• 200 kHz—118 m to 206 m (400’ to 700’)

• Cone: 50 kHz—45°, 200 kHz—12°
• RMS Power: 600 W

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Manufacturer Part Number: B45-DT-HB
