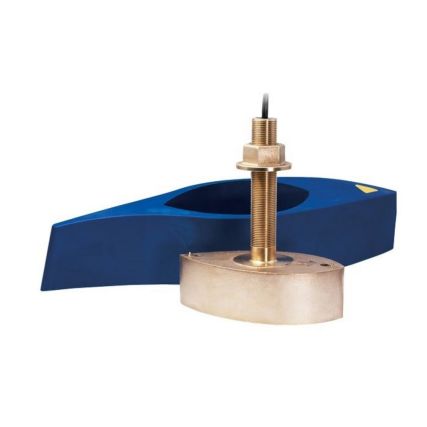

Airmar B265C-LH Bronze Thru Hull with Furuno 12-Pin Mix-N-Match Cable

Model: B265LH-12F

• Depth and fast-response water-temperature sensing
• 1 kW of power for great deep-water performance
• Low frequency: 42 to 65 kHz, 25° to 16° beamwidth, Maximum depth of 914 m (3000′)
• High frequency: 130 to 210 kHz, 10° to 6° beamwidth, Maximum depth of 304 m (1000′)
• 103 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
• Bronze housing with High-performance Fairing for optimal high-speed performance
• Patented Xducer ID® technology

We know that specific frequencies excel at detecting certain species of fish: Bluefin Tuna—60 kHz, squid—133 kHz, and cod—175 kHz. The B265LH transducer includes all these frequencies plus every other frequency in the high and low bandwidths. This powerhouse delivers excellent resolution, bottom discrimination, and bait and game-fish separation at all depths.

Airmar’s B265LH is packed with a seven-element, low-frequency array that operates between 42 and 65 kHz for excellent deep-water performance. The high-frequency ceramic operates between 130 and 210 kHz with a narrow, 10° to 6°, beam—perfect for picking apart structure and pinpointing tight-holding fish in structure.

The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).

Specifications

Cable-Length	9 m (30′)
Frequency Band	Low-High
High Frequency	130-210 kHz
High Frequency Beamwidth	10°-6°
Low Frequency	42-65 kHz
Low Frequency Beamwidth	25°-16°
Housing Material	Bronze
Max Deadrise	Up to 20° with fairing
Max Depth	Low frequency- 914 m (3000′), High frequency- 304 m (1000′)
Mounting Style	Thru-Hull with Fairing
Power Rating	1 kW
Single or Dual Frequency	CHIRP-Ready Dual-Band
Transducer Functions	Depth, Temperature
Usable Shaft Length	121 mm (4.75″)

What’s in the Box:

• B265C-LH-MM Transduer
• High Speed Fairing Block
• High Speed Fairing Block Bolt Kit
• MMC-12F Cable

Manufacturer Part Number: B265C-LH-12F
