Airmar 11-Pin Low-Frequency Mix & Match Cable F/Raymarine

Airmar 11-Pin Low-Frequency Mix & Match Cable F/Raymarine

11-Pin Low-Frequency Mix & Match Cable for Raymarine

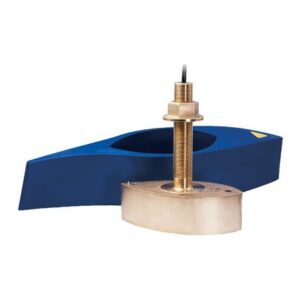

Some CHIRP transducers are now made as Mix and Match models. These versions have a common base transducer with an attached 9-meter cable, plus an interchangeable short (1-meter) brand-specific adapter cable.

The permanently-attached 9-meter cable ends in an Airmar 12-pin connector. This cable is run up through the boat to the equipment location. The short adapter cable connects to the transducer cable at one end and to the equipment at the other end.

Both parts are needed for an installation. If the user changes equipment brand at some later time, the transducer and its attached cable can be left in place and only the adapter cable needs to be replaced.

Note that CHIRP Mix and Match cables cannot be used with conventional 50/200kHz transducers.

The same cables are used for all CHIRP transducers irrespective of their power rating.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Manufacturer Part Number: MMC-11R-LDB
